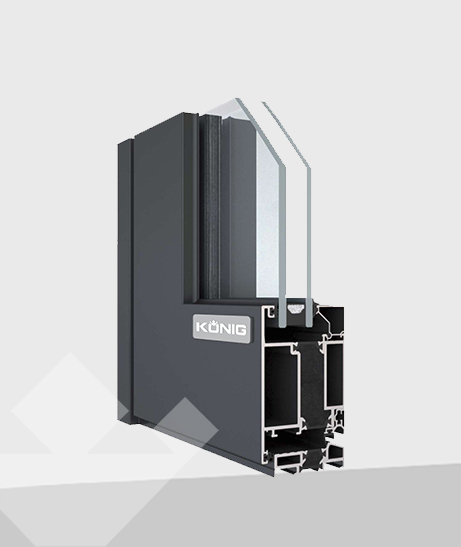

FOLDING DOOR RD70

RD70 is highly suitable for windows that do not require a very large aperture while still optimizing both brightness and usability.

Thermal break	Yes
The width of the glass containment gap	≤ 48cm
The thickness of the profile strip	2,2mm
The weight of the sash	≤ 120kg
Max. dimensions Width x Height	1000 mm x 2500 mm
Screen door with rigid and soft compositions	Yes
Sound insulation level (GB/T8485)	RW up to 39dB
Thermal insulation (GB/8484)	Uw 1,5W/m² K
Water tightness (GB/T7106)	Frame A meets Class 1, Frame B meets Class 6
Air permeability (GB/T7106)	Negative/positive pressure achieved Class 8
Wind load resistance (GB/T7106)	From 1600Pa up to 5000Pa

Threshold diversity: A low threshold ensures good ventilation and does not obstruct movement, while a high threshold provides excellent water resistance.
The hinges are adjustable in three directions, making installation easy.
Traditional S-plus handle design.
Multi-point locking system for enhanced security.
Flat frame and sash design, allowing for flexible integration with various window systems.
Options for door types:
- Low threshold door
- High threshold door
- Outward opening door
- Inward opening door
- Single or double leaf door
