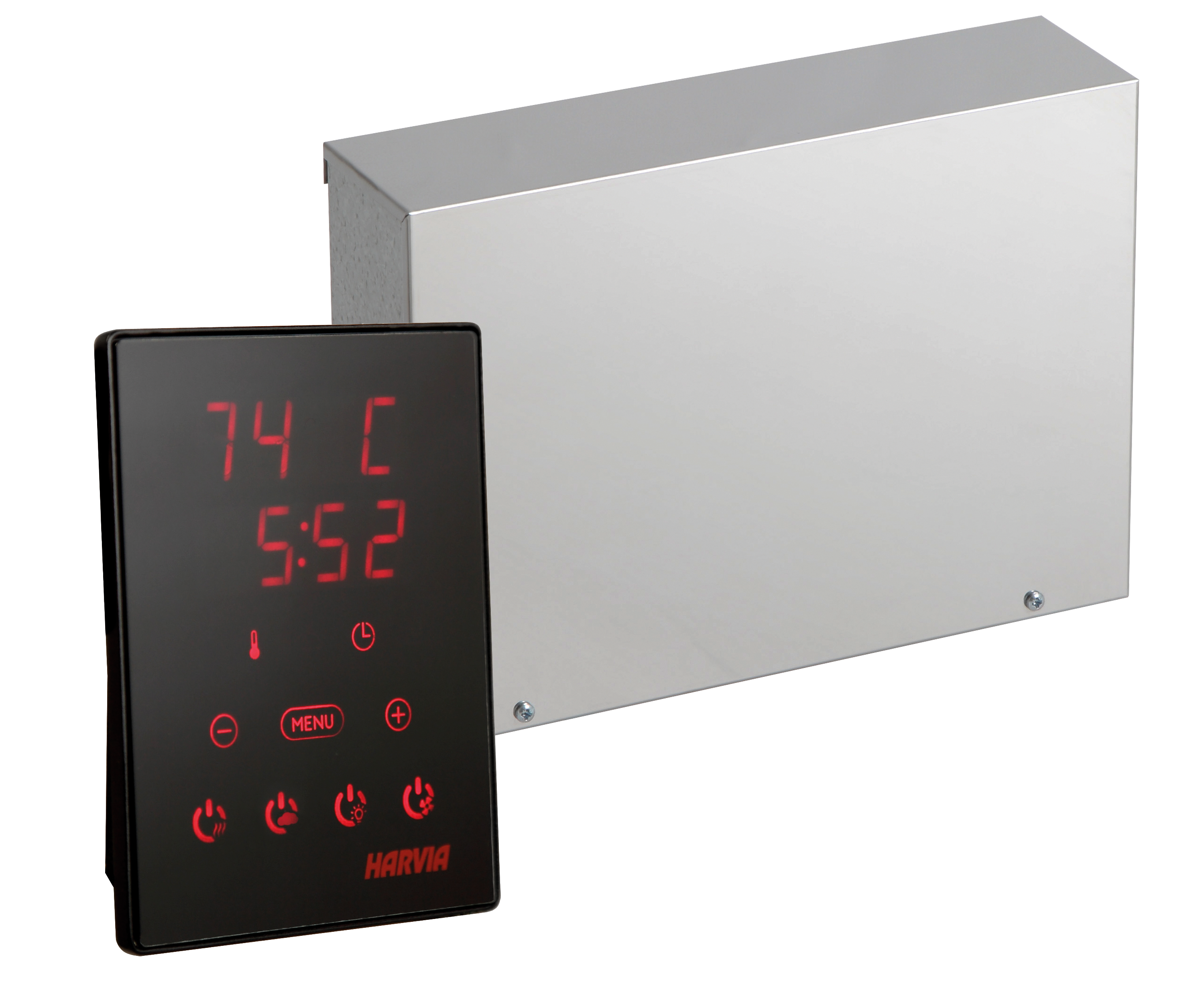

HARVIA XENIO COMBI CX110C

OVERVIEW SPECIFICATIONS ADVANTAGES GALLERY

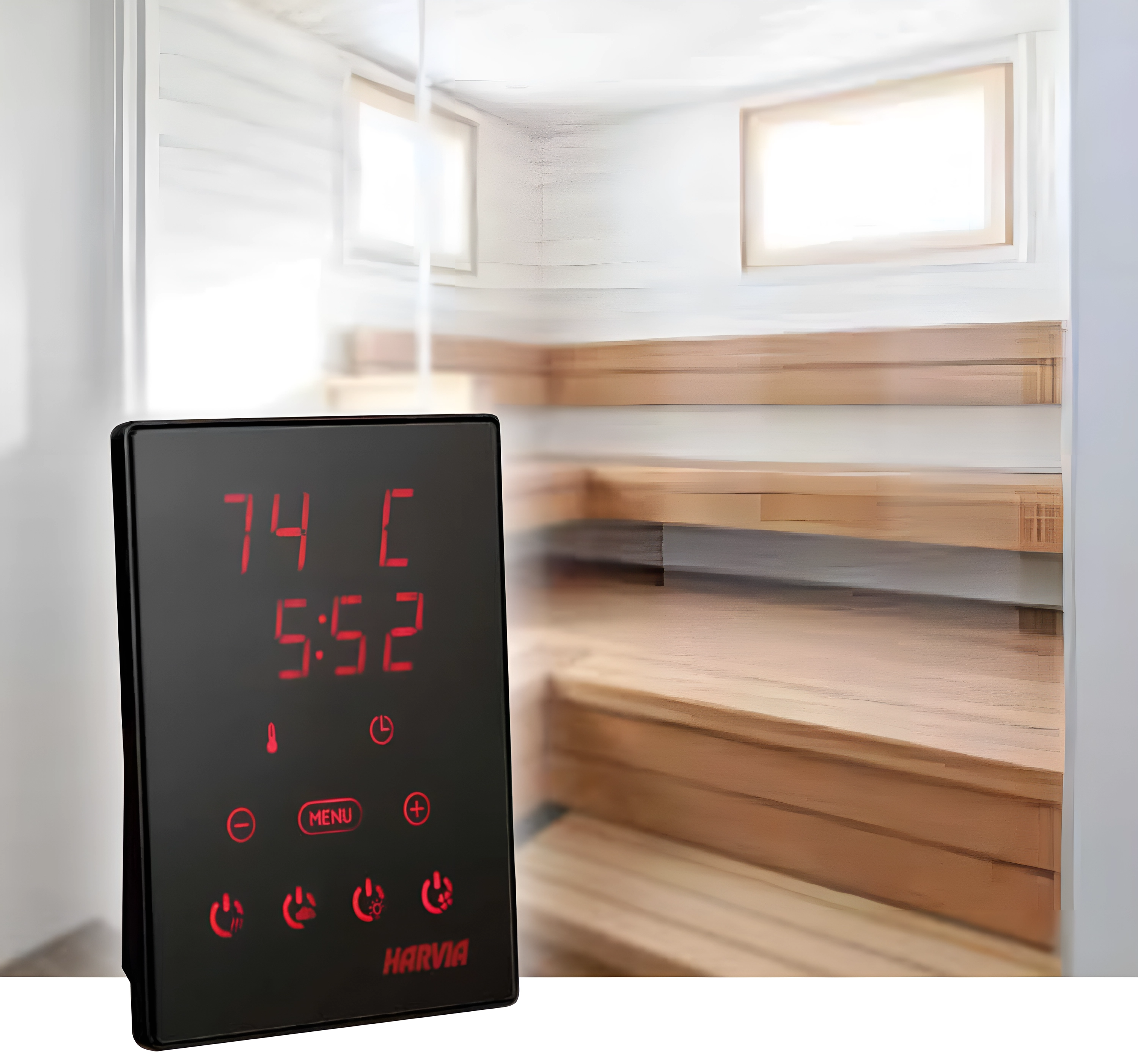

The Harvia Xenio is a touch control unit that provides a modern and elegantly styled user interface to control the heart of your dry sauna room, heater, or stove. The compact yet clear touch control panel is stylish and easy to install in any desired location: in the sauna, bathroom, changing room, or even the living room. The control panel allows you to know at a glance when your sauna room is at the temperature that suits you.

SPECIFICATIONS

Kích thước chiều dày cm	2,4
Kích thước chiều rộng cm	8,5
Kích thước chiều cao cm	11
Trọng lượng kg	1,9
Phạm vi kiểm soát nhiệt độ	40–110 °C
Dây cáp nguồn mm2	5×2,5
Điện áp cung cấp	400V~3N
Tải tối đa	11kW

ADVANTAGES

The temperature adjustment range is from 40 to 110 degrees Celsius.
The operating time adjustment range for household sauna rooms is 1 to 6 hours, and for commercial sauna rooms is 1 to 12 hours.
The pre-set time adjustment range is from 0 to 12 hours.
Control of lights and fan.
Maximum power: 11 kW.
Power supply voltage: 400 V 3N~

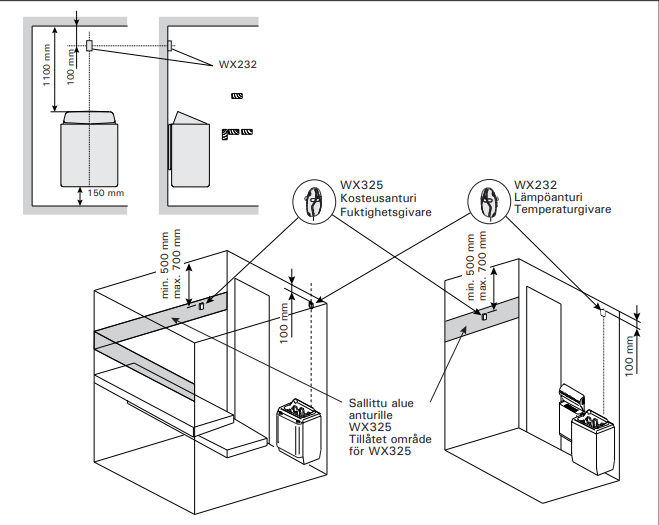

INSTRUCTIONS FOR USE AND INSTALLATION OF HARVIA XENIO CX110
