SLIDING WINDOW RSW113P

OVERVIEW SPECIFICATIONS ADVANTAGES GALLERY

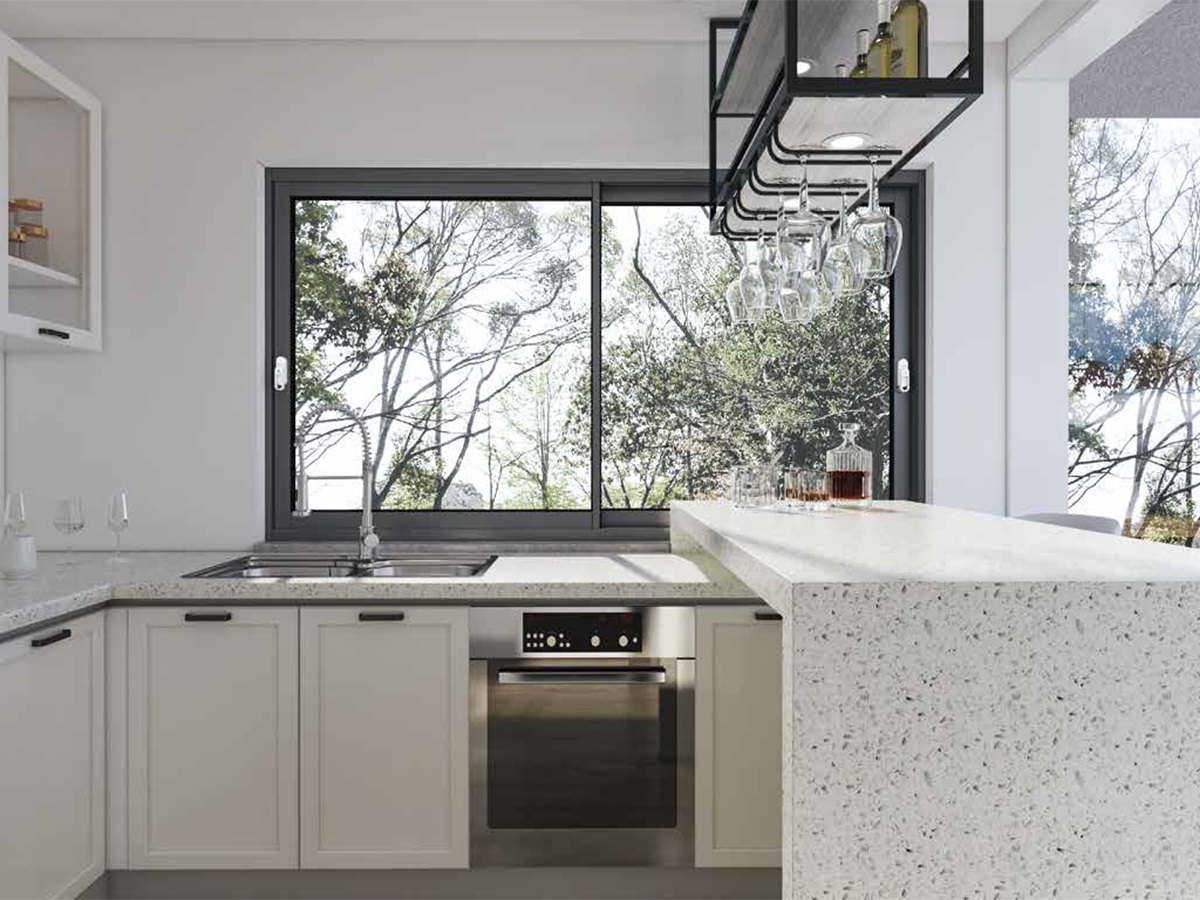

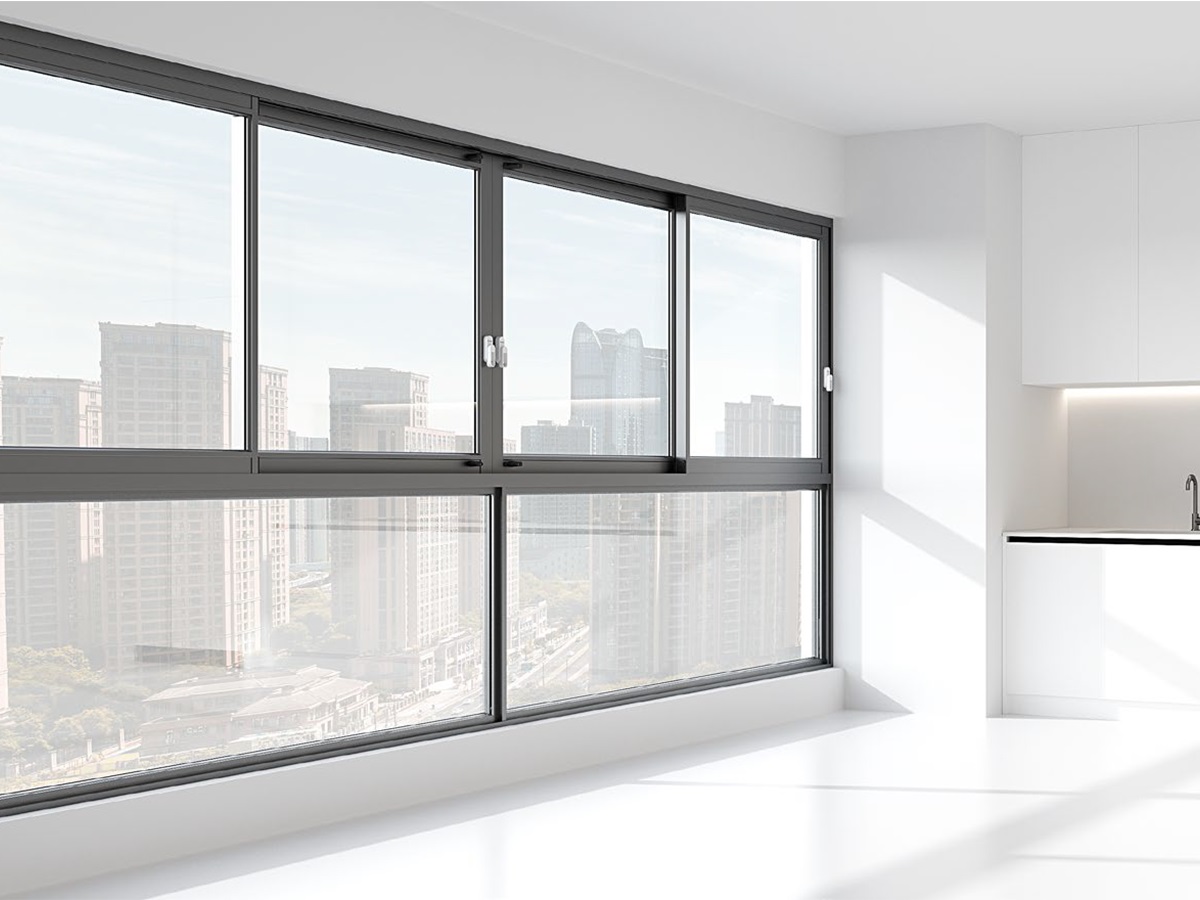

RSW113P is a Slim window system characterized by its sliding opening method, eliminating the need for space to swing in or out. This feature saves space compared to conventional casement windows, especially in limited spaces.

RSW113P offers excellent thermal insulation, wind resistance, and water-tightness. It can transport you into a space where you forget the outside world, similar to the beautiful notes of raindrops hitting the window.

SPECIFICATIONS

Thermal break	Yes
The width of the glass containment gap	≤ 32mm
The thickness of the profile strip	1,8mm
The weight of the sash	≤ 160kg
Max. dimensions Width x Height	2000 mm x 2000 mm
Screen door with rigid and soft compositions	Yes
Sound insulation level (GB/T8485)	Rw up to 37dB
Thermal insulation (GB/8484)	Uw 2,1W/m² K
Water tightness (GB/T7106)	Up to Class 3
Air permeability (GB/T7106)	Negative/positive pressure achieved Class 8
Wind load resistance (GB/T7106)	From 2600 up to 4000Pa

ADVANTAGES

RSW113P allows ample natural light to penetrate the room, enhancing ventilation in the space.
The stainless steel guide rail and specially designed wheels ensure smooth, frictionless operation, reducing wear and tear and providing stable and comfortable usage.
Its simple and lightweight design doesn’t intrude on indoor or outdoor spaces, harmonizing with architectural aesthetics.
Featuring a secure multi-point locking system and a classic D-Plus handle with a rotating mechanism, it offers a great user experience.
The modern drainage system design enhances its functionality.
